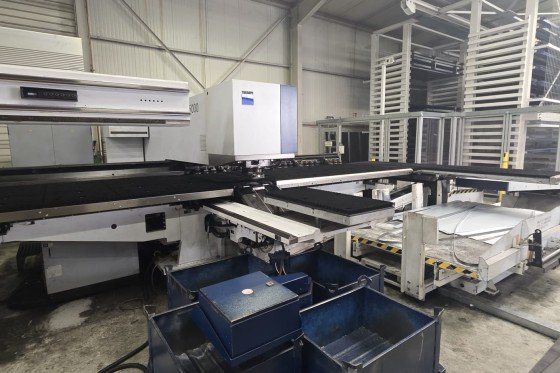

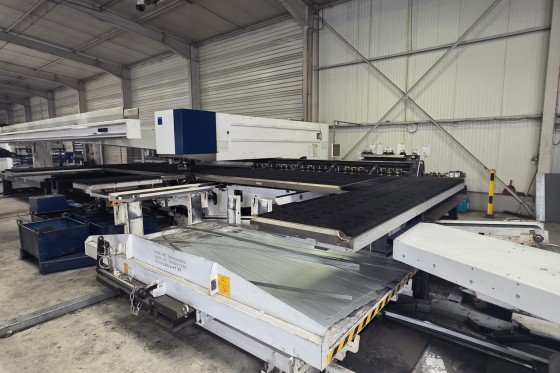

PUNCHING MACHINE TRUMPF TRUPUNCH 5000 – 1600 (S12) (FMC), SM-1365

Standard configuration

Machine
⦁ Stable C-frame for easy access
⦁ Linear magazine inclusive four clamps
⦁ Parts flap 500 x 500 mm
⦁ Good parts container
⦁ Ability to retrofit ToolMaster Linear

Punching station
⦁ Electro-hydraulic punching head
⦁ Rotatable single tool adapter
⦁ Programmable presser foot
⦁ Stripper position sensor
⦁ Tool length compensation
⦁ On-Demand-Drive
⦁ Punch stroke rate and thread stroke rate counters
⦁ Spray lubrication for punches
⦁ Vacuum slug removal with condition monitoring
⦁ Monitoring of fill level of tapping and tool lubrication

Control
⦁ Open controller based on Sinumerik 840D Solutionline
⦁ Control panel with 17“ TFT touch screen

Data transmission
⦁ USB interface and network connection RJ45

Safety
⦁ CE marking
⦁ Multi-beam light barriers
⦁ Rapid hydraulic shutdown
⦁ Sheet collision detection

Additional equipment

Punching options
⦁ Function MultiTool
⦁ Function MultiShear
⦁ Function marking / rapid beading
⦁ Function deburring and roller technology
⦁ Active die with brushed parts chute and Engraving from below technology

Machine options
⦁ 4 High-adjustable clamps
⦁ Sensor for part chute
⦁ Installation on air cushions
⦁ Chip conveyor with tilt container

Options for thin sheet processing
⦁ Brush tables with loading and unloading aid
⦁ Variable Table removal 500 mm

Automation

SheetMaster
⦁ Standard configuration StheetMaster AS15 (1600): Multi-functional sheet handling system for automated processing of sheet formats up to 4000 x 1500 mm:
– Loading station with fanning magnets
– Suction frame 4000 x 1500 mm
– Suction cups with peeler cup
– Vacuum sensor for each circuit
– Central lubrication
– Sheet thickness sensor for double sheet check
–  Clamp closing automatically

GripMaster
⦁  Standard configuration: Automation component for removing scrap skeletons 4000 x 1500 mm:
– Removal of scrap skeletons and remainder strips with the GripMaster
– Automatic stacking of scrap skeletons in specified position on a scissors table
– The scrap skeleton is removed almost simultaneously to loading of a new sheet
– Process monitoring through sensors in the skeleton grippers
– Tiltable skeleton pallet 4000 x 1500 mm

⦁ Double Cart system for loading and unloading including storage interface
Double cart unloading incl. store interface:
 – To double the capacity for holding finished parts
 – Part sorting in combination with the SheetMaster
 – Finished parts are unloaded virtually parallel to production
