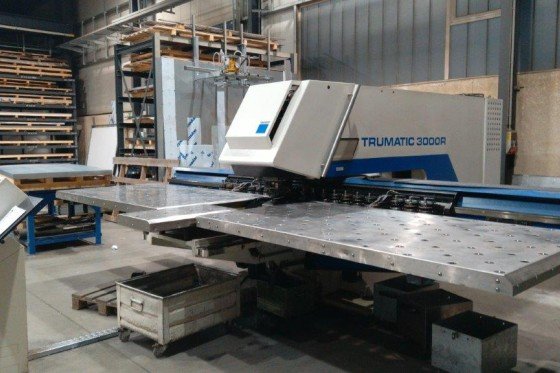

PUNCHING MACHINE TRUMPF TRUMATIC 3000R – 1300, SM-1348

Offerte aanvragen
Technische informatie
Artikel nummer SM-1348
Fabrikant TRUMPF
Type TRUMATIC 3000R – 1300
Jaar 2004
Werkgebied 2550 x 1280 mm
Ponskracht 18 to
Besturing Bosch PNC -P
Max. plaatdikte 6.4 mm
Max. materiaal gewicht 150 kg
Configuration



Standard configuration

⦁ Stable C-frame
⦁ Coordinate guide with integrated linear magazine, 21 tool stations, automatic tool changer
⦁ 2 clamps
⦁ Automatic parts chute  500 x 500 mm
⦁ Good parts container
⦁ Drives: Maintenance-free, digital three-phase servo motors
⦁ Punching head: Hydraulic system with closed loop,  single tool adapter, 360° rotation of all tools, automatic tool length compensation, spray tool lubrication
⦁ Programmable stripper movement
⦁ Programmable presser foot
⦁ Vacuum slug removal
⦁ Swarf bucket
⦁ Control: BOSCH PNC-P, job-oriented user interface, Online-help, diagnostic functions, integrated 3.5″ disk drive, RJ45 network connection, Teleservice
⦁ Graphic programming ToPs 2000
⦁ Safety: CE marking, multi-beam light barriers, rapid hydraulic shutdown

Additional equipment

⦁ Function Multitool
⦁ Function Tapping
⦁ Function Deburring and Roller Technology
⦁ Repositioning cylinders
⦁ Sensor for parts chute
⦁ Additional clamp
⦁ Clamps open individually
⦁ Anti-vibration installation
