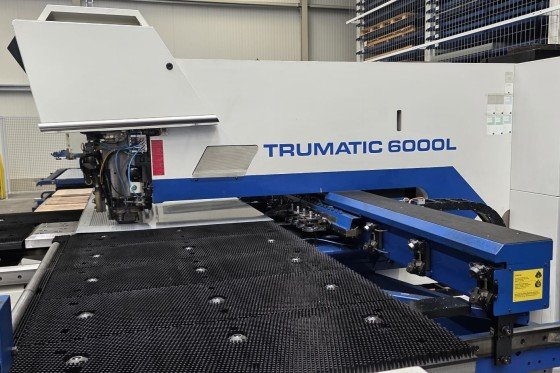

COMBINED MACHINE TRUMPF TRUMATIC 6000 – 1600 FMC, 2700 WATT, KM-1165

Standard configuration

⦁ Stable C-frame
⦁ Coordinate guide with linear magazine with 21 tool stations
⦁ 3 clamps
⦁ Drives with maintenance free 3-phase servo motors
⦁ Programmable presser foot for repositioning
⦁ Repositioning device with programmable strippers
⦁ Sensor monitored part chutes 500 x 500 mm for Punching and Laser station
⦁ 2 good parts containers
⦁ Laser unit: TruFlow 3200 CO2 Laser radio-frequency excited, isolated against vibrations, integrated in machine frame, including cooling unit and Laser control TASC 3
⦁ NitroLine: High-pressure cutting
⦁ SprintLine
⦁ ContourLine
⦁ Programmable cutting gas pressure
⦁ Laser cutting head with 5″ lens
⦁ Laser cutting head with 7,5″ lens
⦁ Laser cutting head – quick changing device
⦁ ControlLine
⦁ LensLine
⦁ Punching head: Mono tool adapter, 360° rotation of all tools, automatic tool lenght compensation, spray tool lubrication, 2nd lubricant container, counter per pass and thread, vacuum slug removal, swarf bucket
⦁ Control unit: Siemens Sinumerik 840D, control panel with 10,4″ TFT color screen, easy to use, Online help, diagnostic functions, maintenance logbook, technology data, teleservice, integrated 3,5″ floppy disk drive, RJ45 net connection
⦁ Safety: Multi-beam light barriers, rapid hydraulic shutdown, extraction system, compact dust extractor, Laser guard against scattered radiation at the cutting head

Additional equipment

Punching options
⦁ Function MultiTool
⦁ Function MultiShear
⦁ FunctionTapping
⦁ Function Marking/Rapid beading
⦁ Function SoftPunch

Machine options
⦁ 1 additional clamp
⦁ Chip conveyor with tilt container
⦁ Footswitch Start

Special thin sheet processing
⦁ Brush tables with loading and unloading aid
⦁ Sheet collision detection

Automation

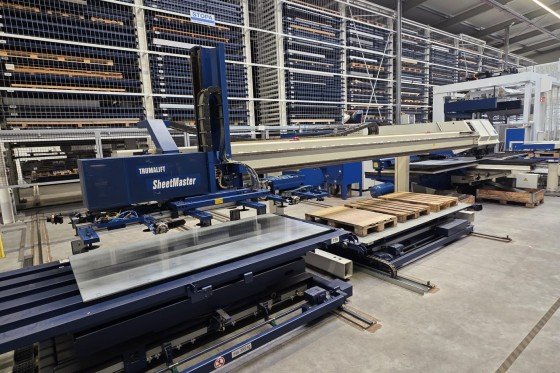

SheetMaster
⦁ Standard configuration SheetMaster 3000 x 1500 mm
 – Suction frame
 – Peeler cup
 – Vacuum sensor
 – Central lubrication
 – Sheet thickness sensor for double sheet check

SheetMaster options
⦁ Peeling system

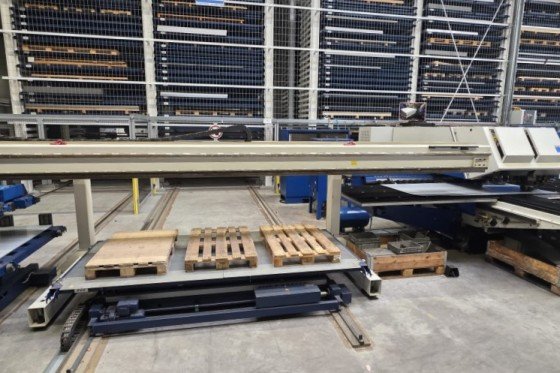

GripMaster
⦁ Standard configuration GripMaster 3000 x 1500 mm
 – Scissor table 300 mm
 – Grippers with sensors
 – Scrap skeleton pallet tiltable 3000 x 1500 mm
