Standard configuration
Machine
⦁ X = 3000 mm, Y = 1300 mm, Z = 600 mm
⦁ B = ± 135°, C = n x 360°
⦁ Inclusive dynamic level 3
⦁ 30 m laser light cable
⦁ 21,5″ control panel with Touchpoint-HMI
⦁ Teachpanel wiith Teach-Software
Additional equipment
Laser cutting
⦁ CutLine Professional
– Preparation for laser cutting
– Cutting technology tables
– ControlLine
Laser, beam guidance & optic
⦁ TruDisk 3001
⦁ Diode-pumped disc laser with 3000 Watt power at the workpiece
– Beam quality at the incoupling into the LLK 4 mm*mrad for laser light cable ~ 100 µm
⦁ Laser power control
⦁ Number of optical outlets
– Beam guide per outlet with 100 % power
– Including pilot laser per outlet
⦁ Water-Air Chiller
– For TruDisk 3000 and TruDisk 3001
⦁ Dynamic cutting optics f=150
⦁ Adjustment device for cutting optics
Laser cutting process
⦁ Cutting gas nitrogen
– Proportional valve for connecting nitrogen as cutting gas
⦁ FastLine Cell
⦁ Smart Optics Setup Basic
⦁ FocusLine
⦁ Tool radius correction
Workpiece handling

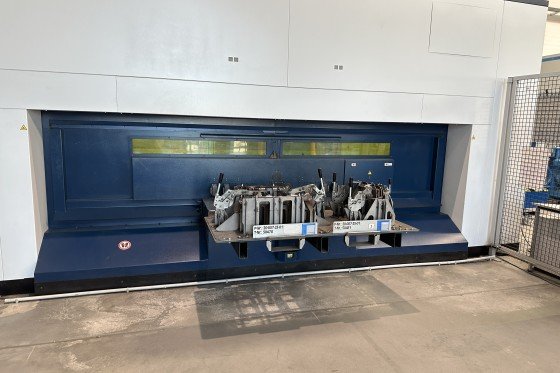

⦁ Rotary table D=4000 mm
⦁ Scrap conveyor for rotary table
⦁ 3 x Horizontal fixture interface
⦁ Control interface, double (RC)
Safety device & periphery
⦁ Exhaust piping
⦁ Compact dust extractor with 4500 m3/h
– Including spark pre-separator and self-cleaning filter mats
⦁ Safety cabin for rotary table
⦁ Basic Loading, rotary table
⦁ Machine status light
