Standard configuration

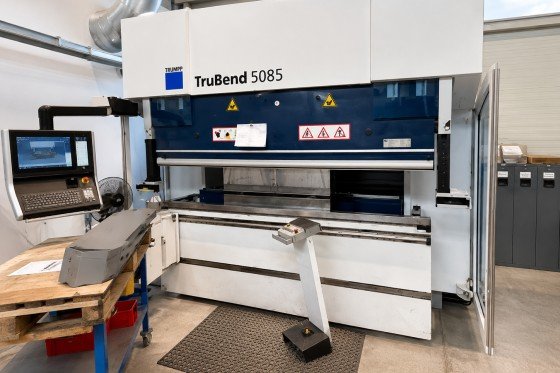

Machine
⦁ Stable machine frame as all-steel construction
⦁ Ram, stress relief annealed
⦁ Spherical ram suspension, with ram tilt
⦁ Electro-hydraulic downstroking drive with 4-cylinder technology
⦁ Modern block hydraulics with control valves mounted on the cylinder
⦁ Electronic pressure balance
⦁ Measuring system with centered glass scales and temperature compensation
⦁ Control panel with LCD panel, footswitch für Emergency up, down and E-STOP
⦁ Hydraulic oil filled in the machine (lifetime lubrication)
⦁ Oil cooler
⦁ Switch cabinet cooling (air-air heat exchanger)
⦁ Modern machine design

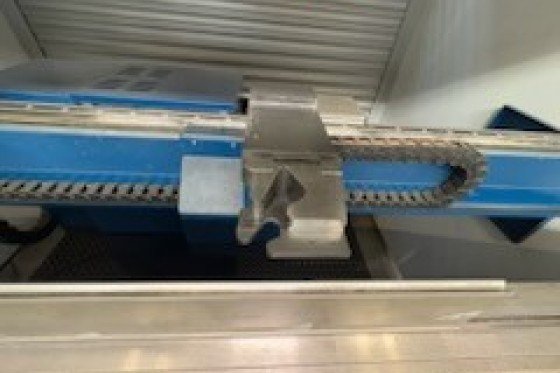

⦁ Backgauge system 2-axes

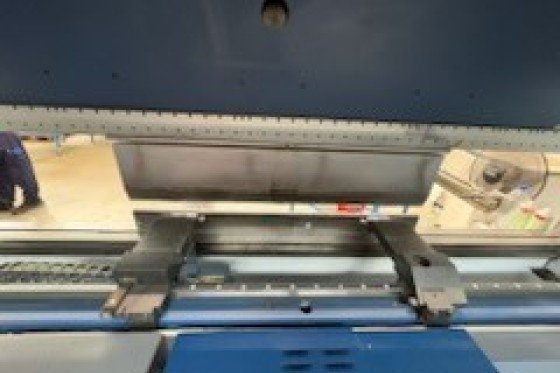

⦁ 2 pieces back gauge fingers
Tool holder
⦁ Manual upper tool clamping
⦁ Hydraulic lower tool clamping
Crowning
⦁ Manual crowning
Lower Tool Adjustement
⦁ Lower tool adjustment CNC, programmable
Safety
⦁ Standard Safety equipment: Machine safeguarded by means of Emergency Stop button, protective panels, CE certificate
Control
⦁ TRUMPF TASC 6000
⦁ Network connection machine control
Operation
⦁ Communication Track: For use of ACB-angle sennsor tools (module) and the opinions Mobile Control and Mobile Handwheel
⦁ Control panel: With LCD panel, footswitch für Emergency up, down and E-STOP
Additional equipment
Machine options
⦁ Die space/stroke extension by 230 mm to 615 mm
Backgauge system
⦁ 5-axis backgauge system, switch cabinet air conditioning
Tool holder
⦁ Hydraulic upper tool clamping
Crowning
⦁ CNC crowning
Safety Device
⦁ Safety device BendGuard (with Block-Laser)
Material handling
⦁ 2 front support brackets
Additional options TruBend
⦁ OCB – Operator Controlled Bending
⦁ Work area lighting, rear
