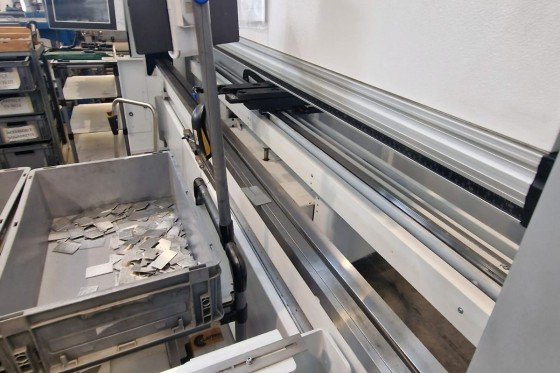

PRESS BRAKE TRUMPF TRUBEND 3100 (B26), PM-1456

Standard configuration

Machine
⦁ Box frame
⦁ Press beam
⦁ Spherical bearing of the press beam with press beam tilting
⦁ Electro-hydraulic upper drive
⦁ Block hydraulics
⦁ Distance measurement system (Y axis) with dynamic deflection compensation
⦁ Hydraulic oil filling (life-long filling)
⦁ Oil cooler

Crowning
⦁ Self-regulating, combined crowning

Backgauge
⦁ Gauge fingers (2 pieces)

Tool clamping
⦁ Manual upper and lower tool clamp

Control
⦁ T3500T Multi-Touch machine control
⦁ Integrated TRUMPF technology data

Data transmission
⦁ USB interface
⦁ RJ45 network interface

Operation
⦁ Operating unit with foot switches

Safety
⦁ CE marking
⦁ Standard safety device

Additional equipment

Crowning
⦁ CNC crowning

Backgauge system
⦁ 5-axis backgauge system : R1, Z1, Z2, X1, X2 (Delta X)

Tool clamping
⦁ Hydraulic upper tool clamping

Control
⦁ Teleservice per internet

Operation ergonomics
⦁ Front work area illumination
⦁ Rear work area illumination

Material handling
⦁ 1 x Bending aid

Safety Device
⦁ Safety device BendGuard
