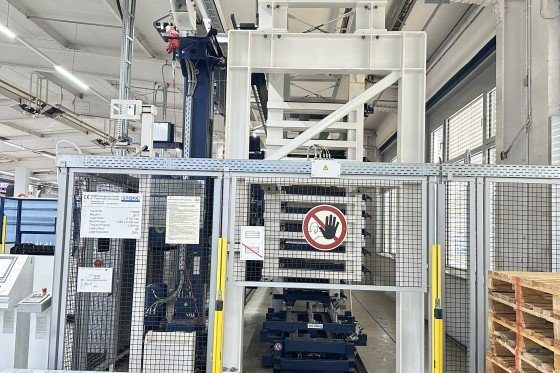

AUTOMATION STOPA STORAGE SYSTEM, LMZ-1123

Automation

Storage System

⦁ Maximum payload per pallet:  max. 3,000 kg
⦁ Maximum usable pallet size:  max. 1,250 × 2,500 mm
⦁ Maximum loading height 1 per pallet: max. 130 mm
⦁ Maximum loading height 2 per pallet: max. 355 mm
⦁ Gross number of storage locations: 104
⦁ Storage locations occupied by stations: 8
⦁ Net number of storage locations:  96
⦁ System height:    4,100 mm
⦁ System length:    22,082 mm
⦁ System width:    4,730 mm
