LASER CUTTING MACHINE TRUMPF TRULASER 5030 FIBER (L68), 5000 WATT, LM-2000

Standard Configuration

Machine
⦁ Closed Machine frame
⦁ Integrated cabinet
⦁ Motion unit for high precision processing
⦁ Automatic pallet changer lengthwise installation
⦁ Torque drive in combination with direct linear drives
⦁ Enclosed beam delivery via laser light cable
⦁ Chiller for machine cooling
⦁ Integrated electrical cabinets with inside light
⦁ Power supply for TruDisk by the machine
⦁ Longitudinal conveyor
⦁ Ergonomic control panel with Touchscreen
⦁ Work area lighting
⦁ Positioning laser diode
⦁ Spray device
⦁ FocusLine
⦁ NitroLine
⦁ PlasmaLine
⦁ Automatic nozzle cleaning

TRUMPF Laser
⦁ Integrated solid-state laser TruDisk 3001 with 1 laser output
⦁ Laser chiller unit (water-air)
⦁ Stimulation via pump diodes
⦁ Laser power control

Cutting Unit
⦁ Universal cutting head
⦁ Single cutting head strategy
⦁ Safety glass to avoid lense contamination
⦁ Safety glass monitoring
⦁ ControlLine: automatic height control and sheet edge detection

Control
⦁ Easy shop floor programming
⦁ Fast Reproduction
⦁ Control Sinumerik 840D SL
⦁ 19” Touch screen
⦁ Technology data is integrated
⦁ Automatic shutdown
⦁ Programmable cutting gas pressure
⦁ Multi Sheet Processing
⦁ ContourLine
⦁ Microweld
⦁ FastLine
⦁ FlyLine
⦁ AdjustLine
⦁ Condition Guide

Data transmission
⦁ USB-interface
⦁ RJ45 network connection
⦁ Wireless Operation Point (Basic for Visual Online Support)

Safety
⦁ CE Label
⦁ Light Barriers
⦁ Multi chamber exhaust system
⦁ Compact dust extractor
⦁ Machine enclosure with certificated window (right door)

Additional equipment

Laser options

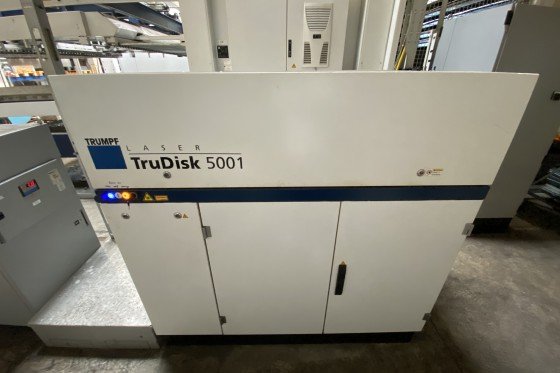

⦁ Solid-state laser TruDisk 5001 with 1 laser output includes BrightLine fiber

Machine options
⦁ Smart Nozzle Automation
comprises:
– Nozzle changer
– Nozzle inspection
– Smart Skip
⦁ CoolLine
⦁ Wide transverse conveyor with tilt container (right hand installation)
⦁ Cleaning brush
⦁ Machine status lamp (incl. MDA-Interface
⦁ Door window on left side for better insight
⦁ Integrated video camera 1 for process monitoring and single picture transmission to network
⦁ Drop&Cut

Installation
⦁ Mezzanine installion (without steel structure)
⦁ Further elongation of 10 m of fiber cable optic between laser and machine

Compact dust extractor options
⦁ Connector, exhaust line for compact dust extractor

Automation

⦁ Preparation LiftMaster Compact
