PRESS BRAKE TRUMPF TRUBEND 7036 (B19), PM-1439

Standard configuration

Machine
⦁ Stable machine frame for standing and sitting operation
⦁ Ram: stress relief annealed, optimized for few deformation
⦁ Electro-mechanic direct drive (Torque drive)
⦁ Inductive linear measurement system with temperature compensation
⦁ Switch cabinet air-condition
⦁ Ergonomic machine design

Backgauge system

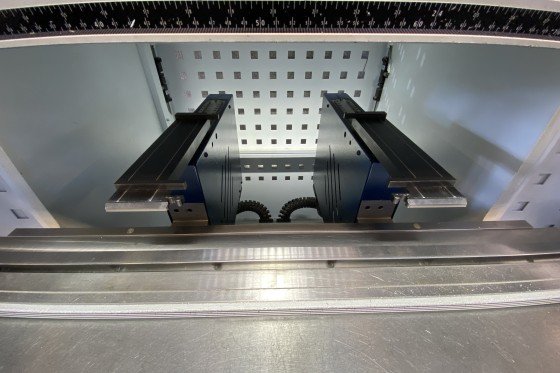

⦁ Highly dynamic backgauge system 3-axes X1, R1, Z1

Tool clamping
⦁ Upper tool system manual, non-hardened and self-centering for vertical tool change
⦁ Manual hardened lower tool clamping

Control
⦁ Integrated machine control: TRUMPF TASC 6000, numerical shop floor programming
⦁ Windows XPe, Pentium M operating system, 1,1 GHz
⦁ 1 GB RAM memory
⦁ 15“ touch screen
⦁ Network compatible

Safety
⦁ Pivotable safety side-doors
⦁ Rear and side protective guard
⦁ 2-button foot switch for standing and sitting operation

Additional equipment

Backgauge system
⦁ 6-axis backgauge system

Ergonomic package
– Supporting table comfort
– Comfort footrest
– LED work area lighting (front)
– LED work area lighting (rear)
– Operating unit, swivel-mounted
– 2 x support brackets

Productivity Plus package
– Graphic workshop programming
– Automatic tool clamps
– BendGuard (with Block-Laser)
