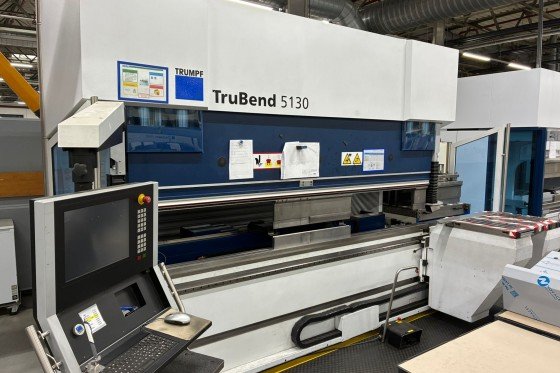

Standard configuration
Machine
⦁ Stable machine frame as all-steel construction
⦁ Ram, stress relief annealed: Highly resistant to torsional forces, of ample size
⦁ Spherical ram suspension, with ram tilt
⦁ Electro-hydraulic downstroking drive with 4-cylinder technology
⦁ Modern block hydraulics with control valves mounted on the cylinder
⦁ Electronic pressure balance
⦁ Measuring system
⦁ Control panel with LCD panel, footswitch für Emergency up, down and E-STOP
⦁ Oil cooler
⦁ Switch cabinet cooling (air-air heat exchanger)
⦁ Modern machine design
Backgauge system
⦁ Backgauge system 2-axes
⦁ 2 pieces back gauge fingers
Tool holder
⦁ Manual upper tool clamping
⦁ Hydraulic lower tool clamping
Crowning
⦁ Manual crowning
Lower tool shifting
⦁ Lower Tool Adjustment
Safety
⦁ Standard Safety equipment: Emergency Stop button, manual roller shutter rear, protective panels, CE certificate
Control
⦁ TRUMPF TASC 6000
⦁ Network connection machine control
Additional equipment
Machine options
⦁ Die space/stroke extension +230 mm
Backgauge system

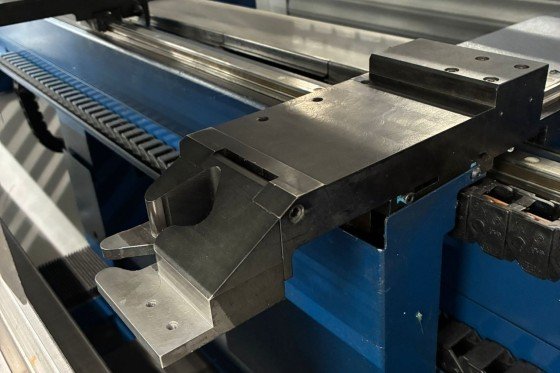

⦁ 5-axis backgauge system
Clamping system
⦁ Hydraulic upper tool clamping
Crowning
⦁ CNC crowning
Safety
⦁ Safety device BendGuard (for 220mm/s)
⦁ Additional footswitch
Material handling
⦁ 1 x Bending aid
⦁ Table length extension
⦁ Table width extension
⦁ Parking position: 900 mm for up to two bending aids
Further TruBend options
⦁ Preparation ACB angle sensor
⦁ Optical set-up and positioning aid
⦁ Work area lighting rear
⦁ Work area lighting front
⦁ Mobile Control
